Behind Chinor FRP Factory: HandLayup Workflow & Custom Production Capacity

1. Complete FRP Hand-Lay-up Production Workflow

Every bespoke FRP order follows a rigorous, multi-stage production sequence. It is critical to clarify that our CNC-processed master plug functions only as a physical prototype — it never directly manufactures final FRP items.

1. 3D CAD Design & Master Plug Fabrication

All custom projects begin with finalized 3D CAD files from clients or our in-house team. These digital models define every curve, dimension, and structural detail. Using industrial CNC equipment, we machine wood or tooling board to create a physical master plug—a 1:1 replica of the target design. This plug is the foundation for all subsequent mold-making.

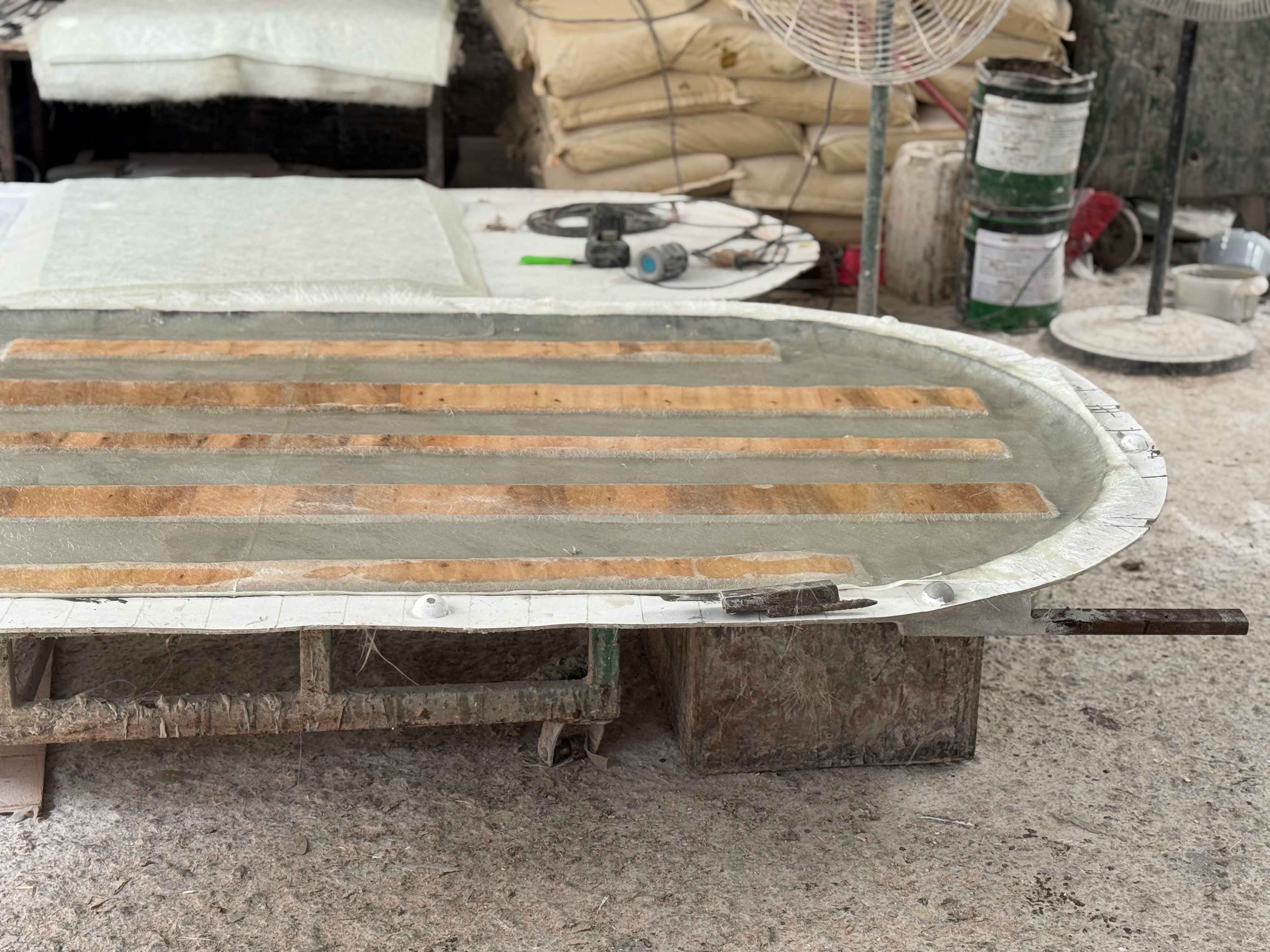

2. Hand Lay-up for FRP Production Mold

Once the master plug is ready, laminators apply gel coat evenly to form the outer cosmetic surface. They then lay successive layers of chopped strand mat and woven fiberglass, saturating each with formulated resin and manually rolling to remove trapped air. After ambient curing, we demold a rigid, reusable FRP production mold. For complex sculptures and large furniture, we add extra laminate thickness to resist deformation over repeated cycles.

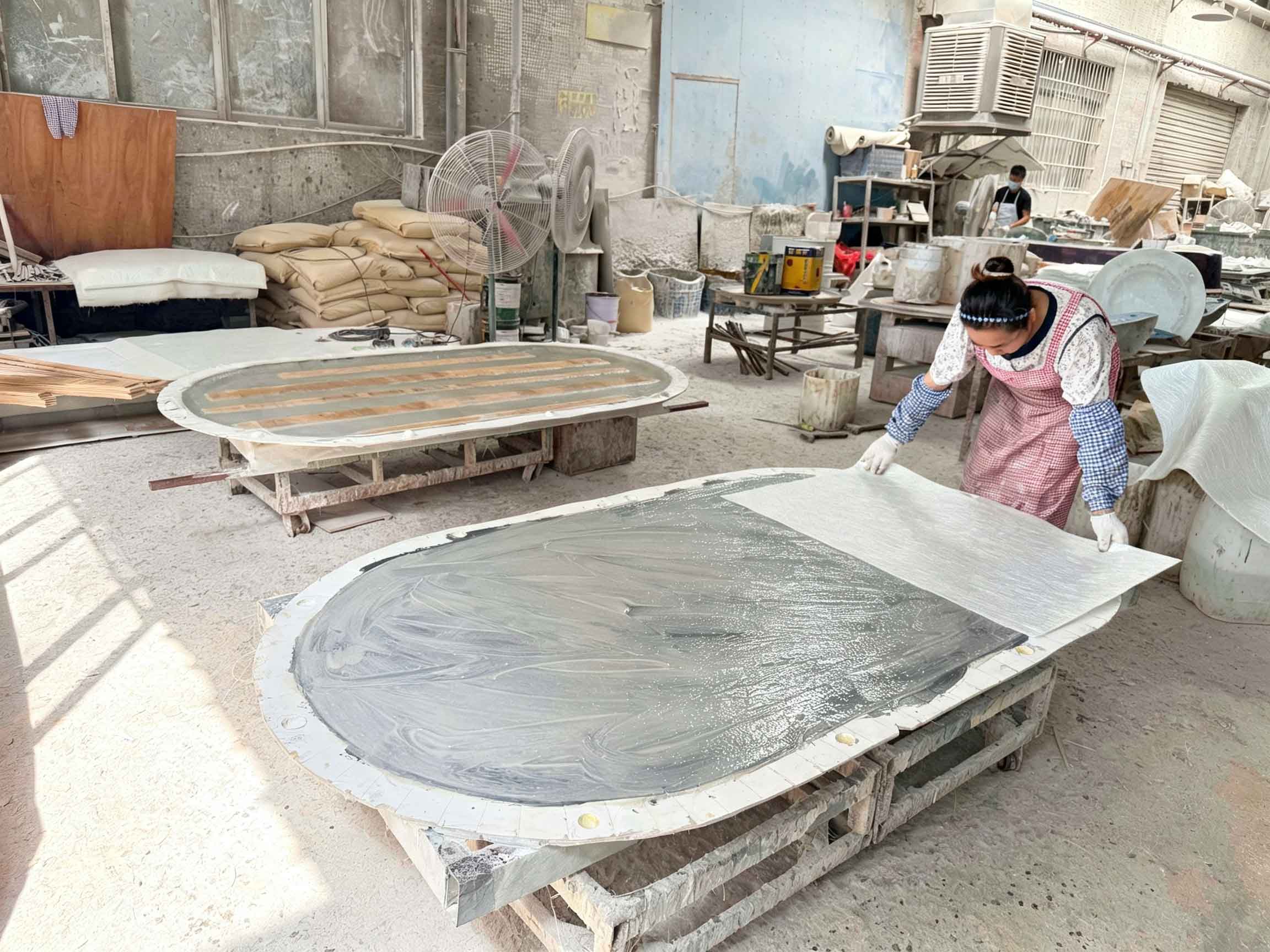

3. Hand Lay-up Molding of Raw FRP Blanks

Inside the production mold, trained laminators repeat the hand lay-up process. Wall thickness follows project specs—public seating and heavy-load installations get extra reinforcing layers at high-stress zones (support feet, load-bearing areas). All steps (gel coating, glass placement, resin impregnation, air removal) are manual. This approach economically achieves complex free-form geometries that injection molding cannot handle for low-to-medium custom batches.

4. Demolding, Trimming & Rough Grinding

After adequate curing, solid FRP parts are demolded. Workers cut away flash and excess material, yielding grey semifinished blanks. These have the final silhouette but show visible mold lines, minor unevenness, and residual burrs, requiring extensive post-processing.

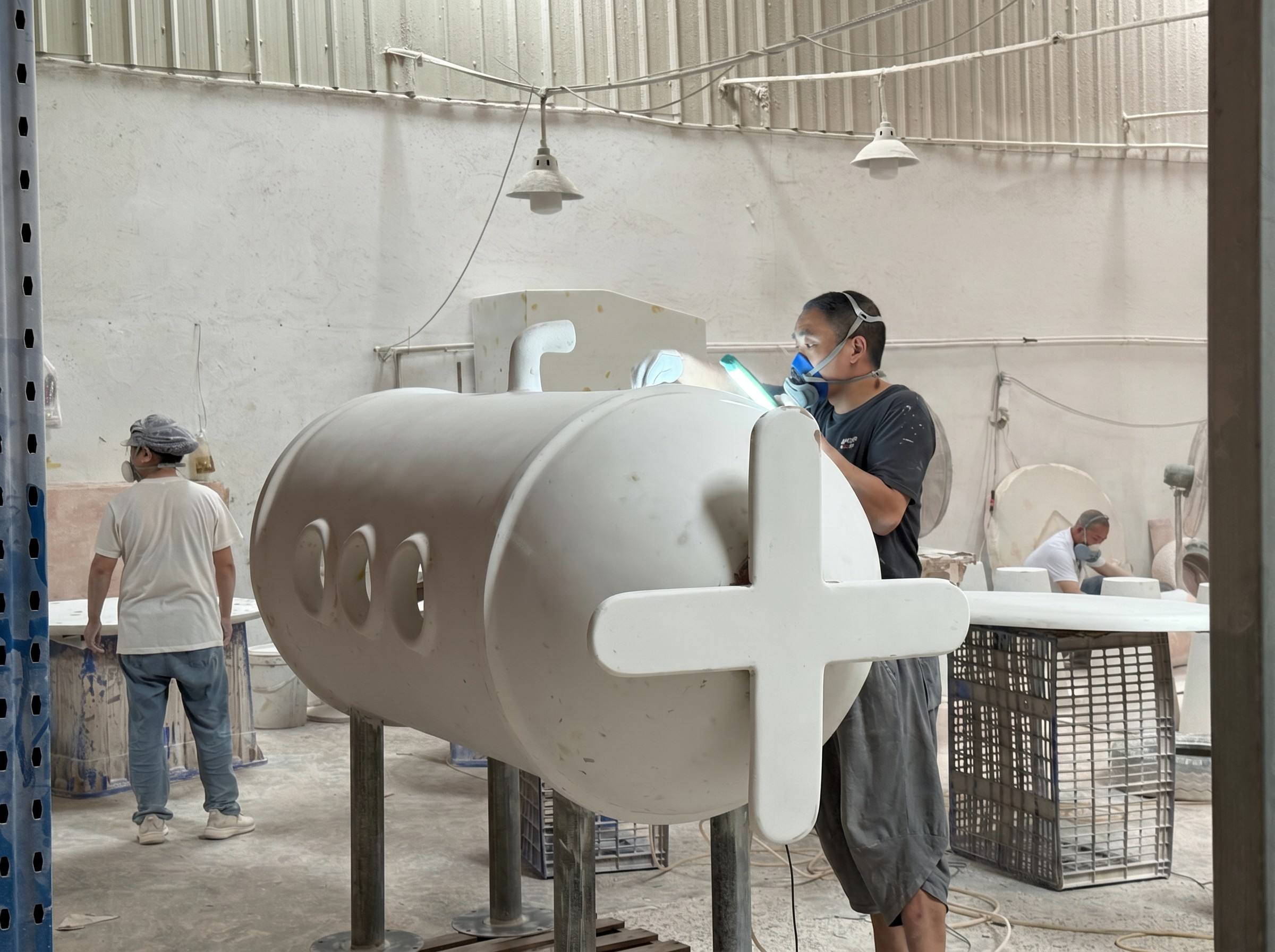

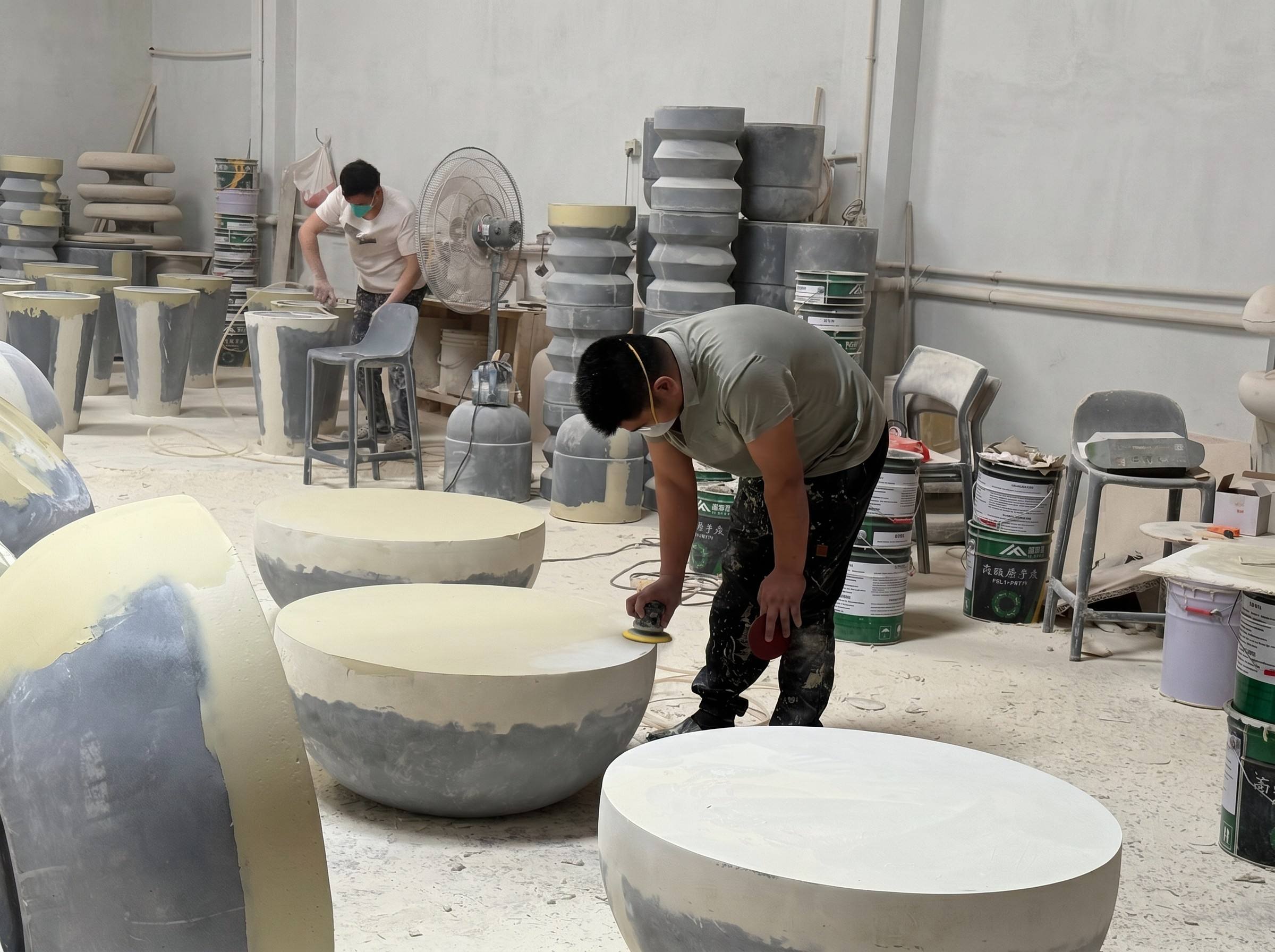

5. Multi-Stage Manual Fine Polishing

Demolded surfaces still carry subtle seams and tiny imperfections—no shortcuts exist. Our workshop performs progressive hand grinding from coarse to ultra-fine abrasives. Every curved contour, inner corner, and transition area gets individual attention. This labour-intensive phase distinguishes premium commercial FRP from low-cost alternatives, delivering a flawlessly smooth substrate for priming.

6. Primer Surfacing & Top Coat Finishing

We apply high-build primer with intermediate sanding to fill micro-pores and pinholes. For indoor use, we offer scratch-resistant interior-grade topcoats. For outdoor projects—theme parks, coastal spots, open plazas—we strictly use UV-stabilised outdoor-grade systems that resist fading, temperature cycling, rainwater, and public contact. Finishes include matte, gloss, textures, and multi-tone colour schemes.

7. Multi-Dimensional Final Quality Inspection

Before packing, each FRP item undergoes comprehensive auditing of structural integrity, cosmetic appearance, and dimensional accuracy. Only after passing all checks is it cleared for shipment.

Practical Note: Artistic sculptural pieces and large parametric-style furniture require significantly more time in master plug finishing and mold fabrication than simple geometric products.

2. Real-world Semi-Finished Parts Overview

Walking through our production facility, you will encounter large quantities of unfinished work-in-progress components, clear evidence of genuine in-house manufacturing rather than resold goods sourced externally.

Workshop Area & Component	Description
Finished white master-plug prototypes	One-off physical patterns reserved exclusively for replicating production moulds, never for end-user delivery.
Grey demolded FRP semi-finished blanks	Components fresh out of production moulds, awaiting grinding and painting. Mould seams and raw laminate texture remain clearly visible.
Dedicated grinding workstations	Where most surface flaws are eliminated before coating operations take place.
Spray-booth zones	Isolated enclosed painting areas that minimise dust contamination, critical for obtaining premium-quality painted surfaces.

These raw=stage workshop shots offer overseas clients transparent visibility into how custom FRP goods develop, helping buyers distinguish real FRP manufacturers from trading companies.

3. Workshop & Showroom Tour

Our factory layout divides production into functionally-separated zones to minimise cross-process contamination and boost consistent product quality:

Workshop Zone	Description
Master-plug workshop	CNC processing area plus manual sanding and sealing stations for prototype patterns.
Hand-lay-up laminating zone	Temperature-controlled workspace for mould-building and FRP-part forming. Stable ambient conditions directly influence resin curing quality.
Grinding & polishing workshop	Dedicated area for all abrasive post-processing work.
Isolated spray-paint booths	Dust-restricted environments for primer and top-coat spraying.

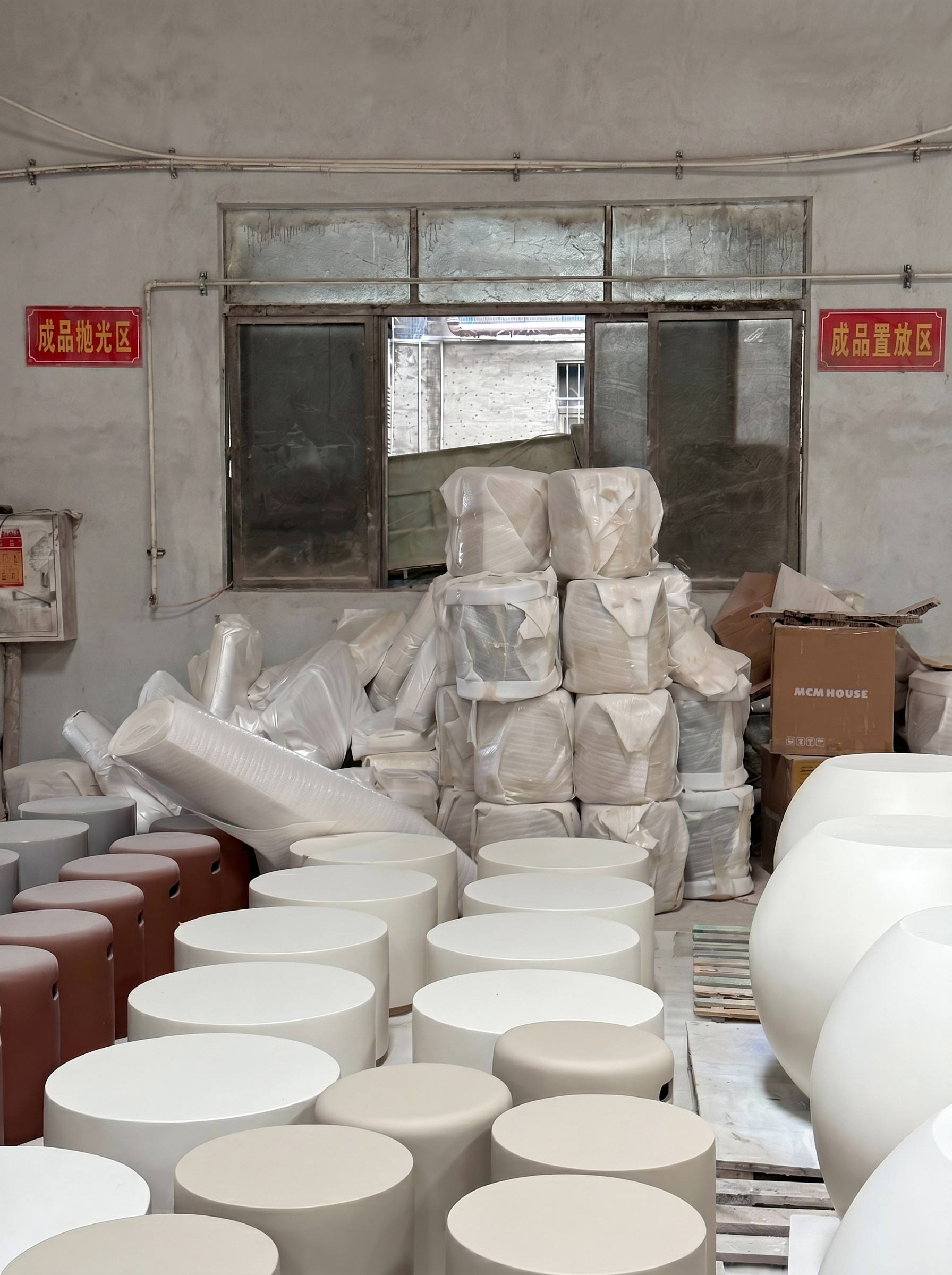

Physical sample showroom	Displays finished FRP benches, animal-theme sculptures, decorative planters and art installations. International customers can assess real-world texture, coating feel, colour performance and actual product scale, even without travelling for an on-site factory audit.

Virtual workshop documentation gives remote B-side project stakeholders confidence in our production capability.

4. Our Custom FRP Core Capabilities

We support diverse bespoke requirements targeted to commercial project stakeholders:

Custom Capability	Details
Dimension Adaptation	Resize benches, sculptures and planters to match exact on-site spatial constraints.
Complex Free-Form & Parametric-Style Curved Surfaces	Realise organic, non-standard shapes derived from designer renderings.
Multi-Colour / Dual-Colour Painted Finishes	Custom two-tone and multi-tone coating schemes.
Custom Surface Textures	Matte, semi-gloss, high-gloss, and special textured anti-slip surfaces for public seating.
Structural Reinforcement Upgrade	Extra fiberglass lamination for high-load public-traffic locations or seaside corrosive environments.
Order Scale Flexibility	From one-off prototype pieces for design validation through to large-volume theme-park and shopping-mall batch orders.

5. FRP Technical Challenges & Quality Control Key Points

Hand-lay-up FRP output quality heavily depends on disciplined craftsmanship and strict process control. We systematically mitigate the most common industry defects:

1. Air-bubble & blister prevention

Incomplete resin wet-out or insufficient rolling leaves trapped air hidden inside fiberglass laminate. When deployed outdoors under strong sunlight, trapped air expands and creates surface blisters. Our laminators meticulously roll every single fiberglass ply to fully expel entrapped air during hand-lay-up operations.

2. Anti-crack structural management

Wall-thickness specification, fiberglass-fabric lay-up sequence and resin-grade selection collectively determine anti-crack performance. Public-access heavy-load furniture receives additional reinforcing fiberglass layers concentrated on stress-bearing points to absorb repeated impact and weight-loading from crowds.

3. Classified coating-grade discipline

We never apply indoor-only paint systems onto items designated for outdoor installation. UV-resistant exterior coating formulas resist colour fading under prolonged sun exposure, rain and wide temperature swings. This simple yet critical rule avoids premature cosmetic failure after site installation.

4. Mould-line elimination

Even well-executed hand-lay-up generates faint mould parting lines. Our multi-round manual polishing workflow grinds and smooths these seams so they become invisible on delivered finished pieces. Many low-cost competitors skip thorough seam-treatment, leaving visible lines on final products.

6. Final Quality-Check Checklist Before Shipment

Every finished FRP piece passes this inspection checklist before packing:

1. Overall outline & curve smoothness verification against original 3D drawings

2. Full-surface cosmetic audit for scratches, pinholes, uneven paint and residual mould-lines

3. Wall-thickness spot-check to confirm compliance with project-specified laminate standards

4. Structural visual inspection focusing on stress-bearing reinforcement zones

5. Dimensional measurement comparing real-world product dimensions to client CAD drawings

6. Coating-finish uniformity assessment, including colour-matching confirmation against approved colour swatches

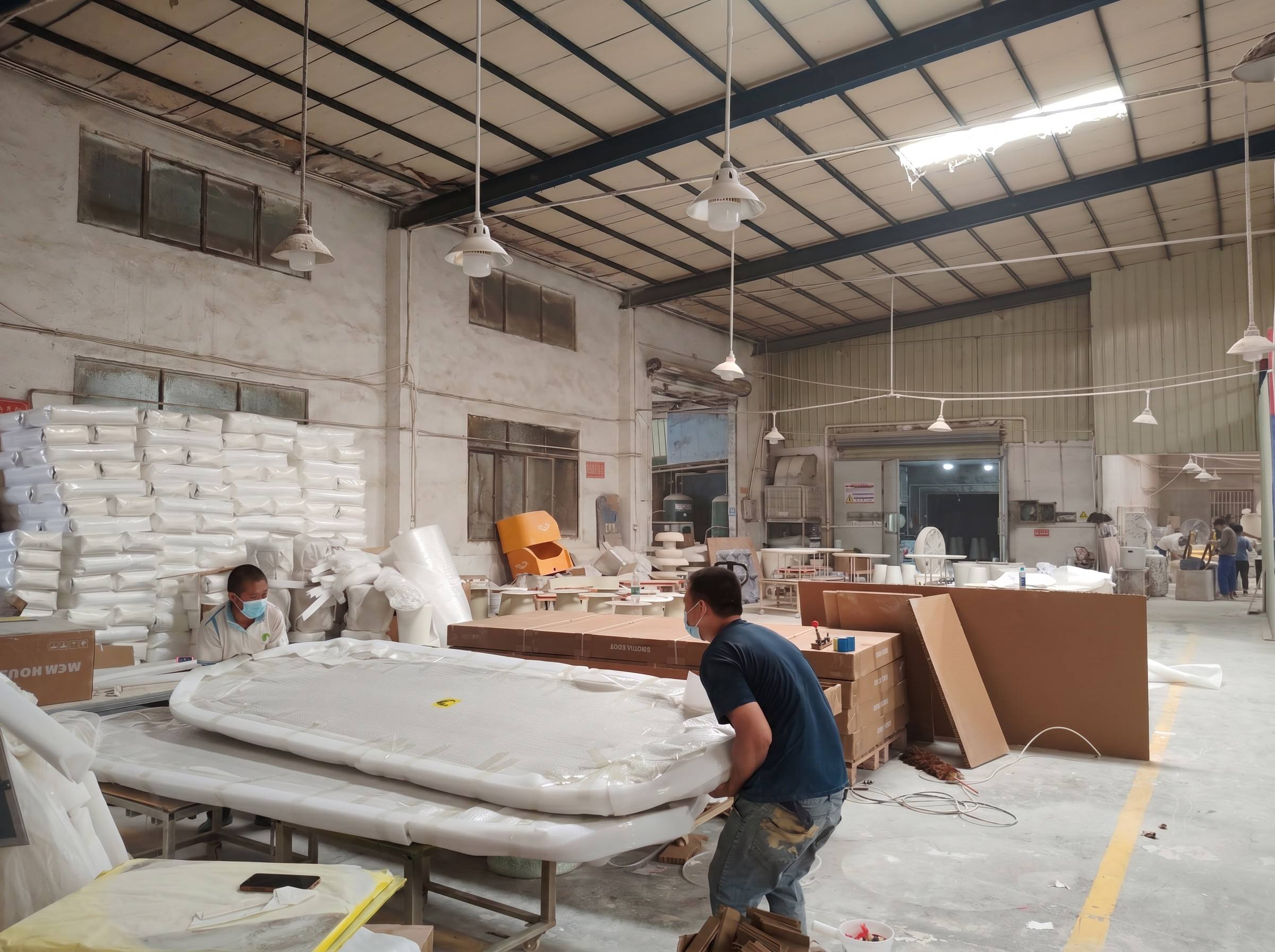

7. Only fully-compliant items move forward into protective export-grade packaging.

FAQ

Q1: Is the CNC-processed wood master plug used to produce final FRP deliverables?

No. The CNC-machined wood or tooling board serves only as a master pattern. We use it to build a reusable FRP production mold, and all finished products are made inside that FRP mold – never directly from the wood plug.

Q2: What exactly is hand lay-up FRP manufacturing?

Hand lay-up is our core technique: skilled laminators manually apply fiberglass layers and resin inside the FRP mold, curing at room temperature. This method is ideal for custom, complex-curved furniture and sculptural art pieces.

Q3: What typical lead times should I expect for custom FRP projects?

Simple designs: 18–25 working days. Highly complex sculptures, large parametric installations, or multi-colour paint jobs: 25–40 working days (from master plug approval). Lead time covers plug fabrication, molding, lay-up, polishing, painting, and full inspection.

Q4: Can you reinforce FRP parts for high-traffic public spaces?

Yes. For shopping malls, playgrounds, and theme parks, we add extra reinforcement plies at stress points to boost mechanical strength and impact resistance for long-term durability.

Q5: Do you support OEM/ODM cooperation for architecture firms and contractors?

Absolutely. We offer full-cycle OEM/ODM services – from renderings, sketches, or 3D files – for architects, project contractors, and commercial space integrators worldwide.
